SINOLIFT SH01 Smart Single Cantilever String Rod Loading Truck

기본 정보
원래 장소: 중국
브랜드 이름: SINOLIFT
인증: CE
모델 번호: SH01
최소 주문 수량: 1 세트
가격: 협상 가능
포장 세부 사항: 표준 규격 수출 패키지
배달 시간: 15 일
지불 조건: L/C, D/A, D/P, T/T, Western Union
공급 능력: 1000개 세트 / 입
제품 이름: Sinolift SH01 스마트 단일 캔틸레버 스트링로드로드 트럭 운전 스타일: 보행자
정격 하중: 500kg 순 중량: 230kg
보증: 1 년 서비스 후: 온라인 서비스, 무료 예비 부품

Product Name

SINOLIFT SH01 Smart Single Cantilever String Rod Loading Truck

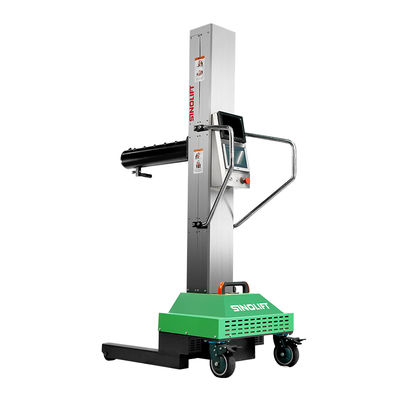

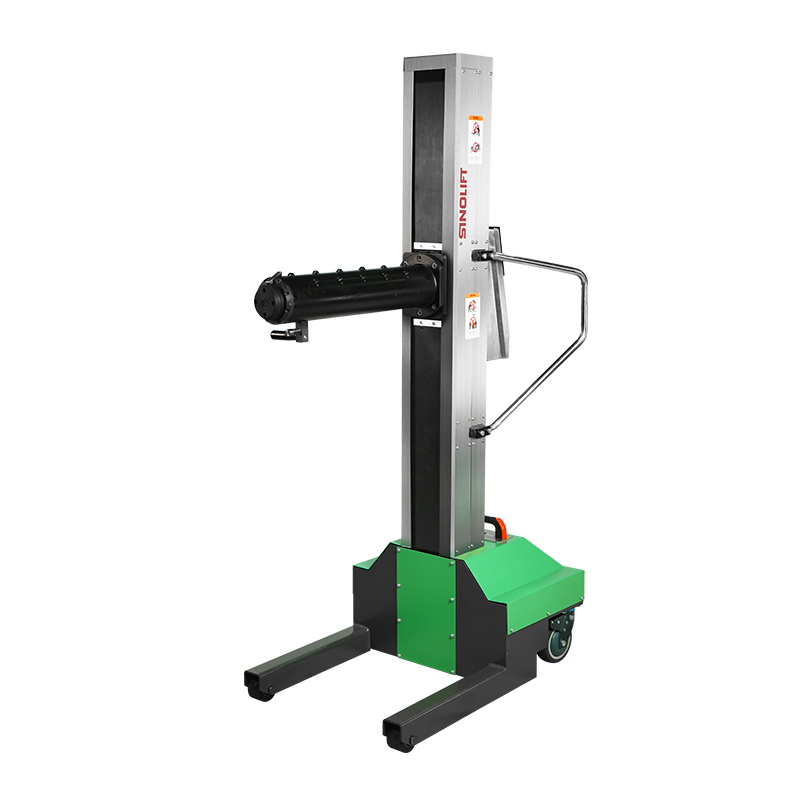

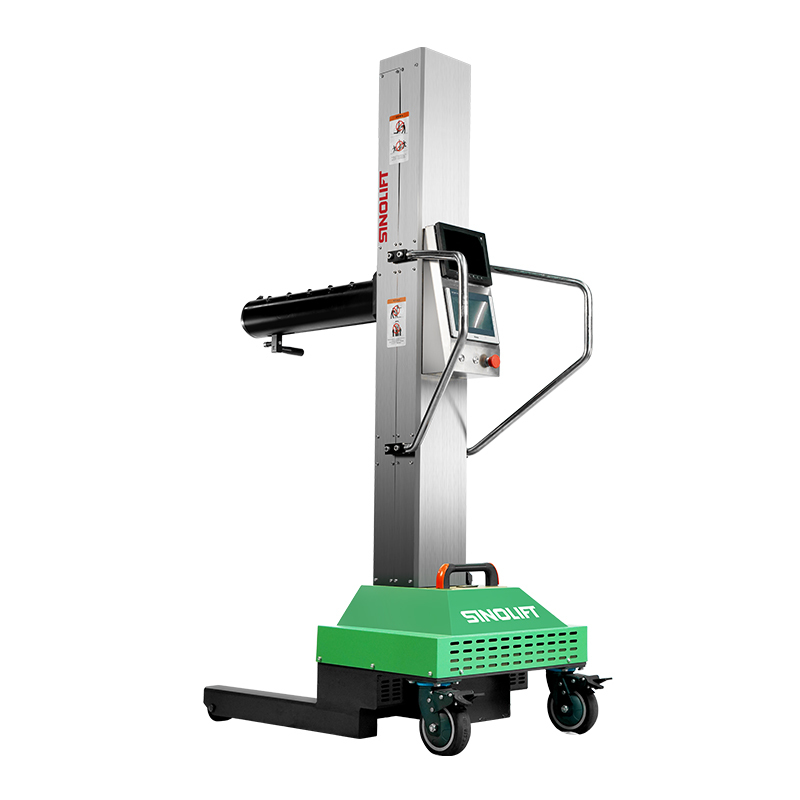

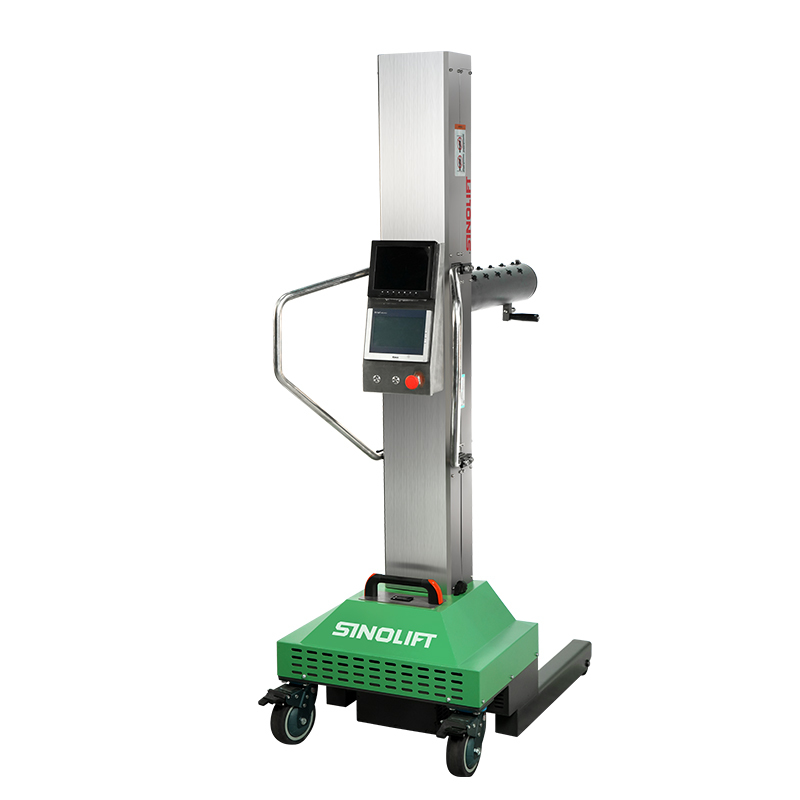

SINOLIFT SH01 Smart Single Cantilever String Rod Loading Truck is an automated guided vehicle (AGV) specifically designed for handling coil-type materials. Its core feature is a flexible lifting and movable single cantilever arm, along with a loading rod at the front end for carrying rolled materials. This equipment is engineered for efficient and precise transportation of coil-shaped loads—such as metal coils, paper rolls, or electrode rolls in the new energy industry—significantly enhancing logistics automation capabilities.

Key Features:

1. Smart & User-Friendly:

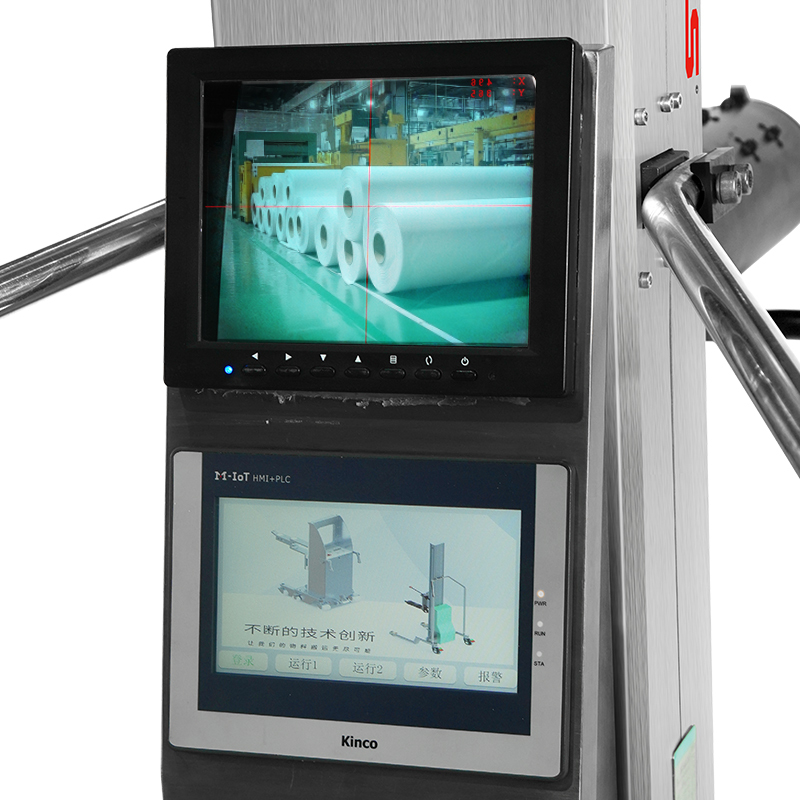

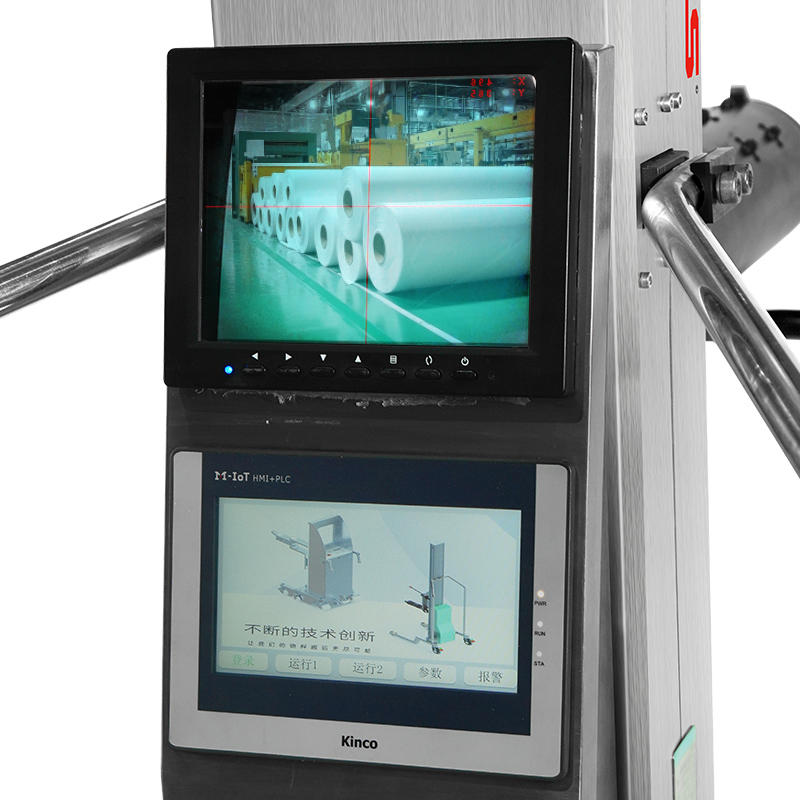

Electric lifting with manual fine-tuning and intuitive touchscreen control, supporting one-touch raising/lowering.

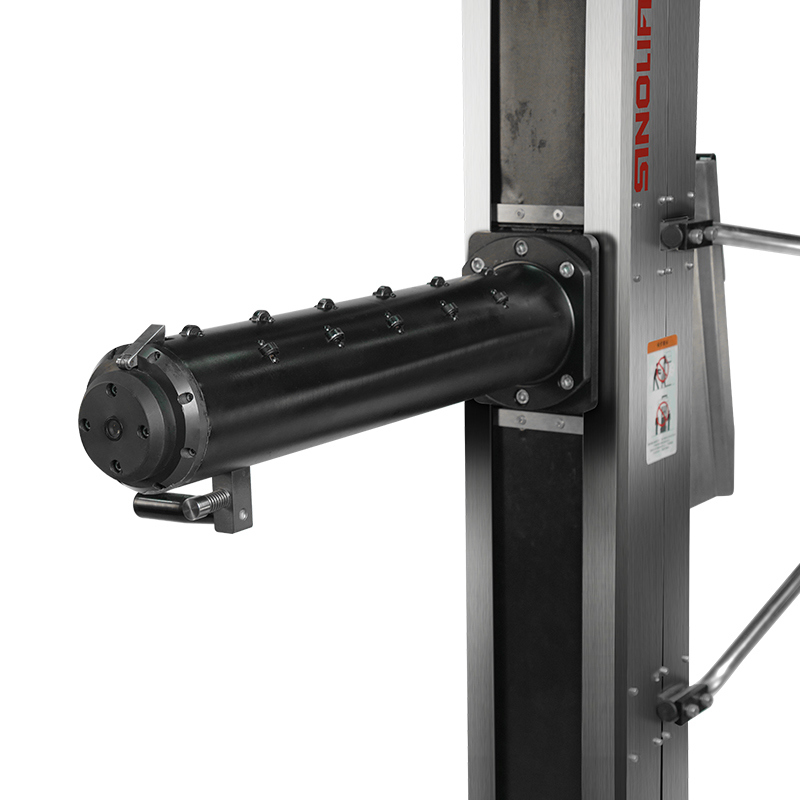

Quick-detachable loading rods to adapt to various roll inner diameters.

2. Safe & Reliable:

Four-wheel design (2 drive wheels + 2 swivel rear wheels with brakes) ensures a small turning radius for flexible movement in narrow workshops.

Stable chassis design with a low center of gravity and a wide base to minimize tipping risks.

3. Efficient Operation:

The electric pushing system operates at 25–30 mm/s, featuring a guide device at the rod tip for seamless roll alignment.

Intelligent control display enables auto-alignment and correction for precise positioning.

Product Specifications

Model   SH01
Type   Semi-Electric
Drive Method   Ball Screw
Rated Load kg 500
Load Center mm 400
Min. Height mm 200
Max. Height mm 1600
Overall Length mm 1260
Overall Width mm 634
Overall Height mm 1965
Cantilever Specification mm 136×680
Front Wheel Specification mm Φ80x55-2
Rear Wheel Specification mm Φ150x50-2
Lifting Motor KW DC 0.75
Battery specification V/Ah DC 48/15Ah
Min. Turning Radius mm 1060
Control Type   PLC Control
Noise Level DB <70
Steering Type   Mechanical
Braking System   Dual Swivel AB Brake
Net Weight kg 230
