| 원래 장소: | 중국 |
|---|---|
| 브랜드 이름: | SINOLIFT |
| 인증: | CE, ISO9001 |
| 모델 번호: | 기원전 |
| 최소 주문 수량: | 1세트 |
| 가격: | 협상 가능 |
| 포장 세부 사항: | 표준 규격 수출 패키지 |
| 배달 시간: | 15 일 |
| 지불 조건: | l/c, d/a, d/p, t/t |
| 공급 능력: | 1000개 세트 / 입 |
| 유형: | 수동 | 로드 용량: | 159 (350)\181 (400)\ 227 (500)kg |
|---|---|---|---|
| 부하 중심: | 25.4 (10) | 리프트 높이(포크 업): | 3.6(142)\3.0(120)\1.8(70) |
| 어플리케이션: | 산업 분야 | 보증 서비스 후: | 보증 서비스 후 |
Product Name:

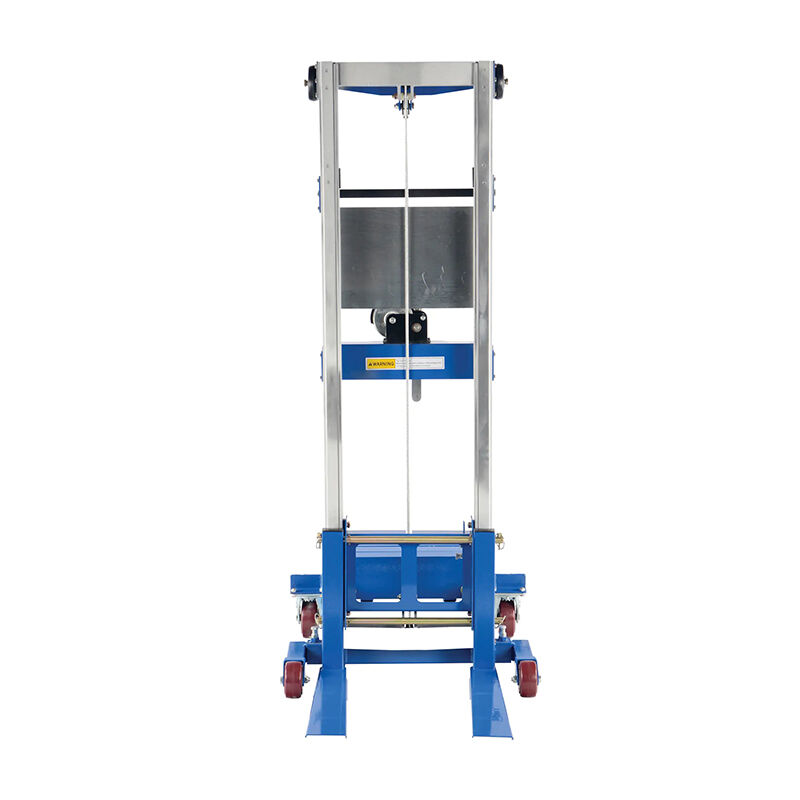

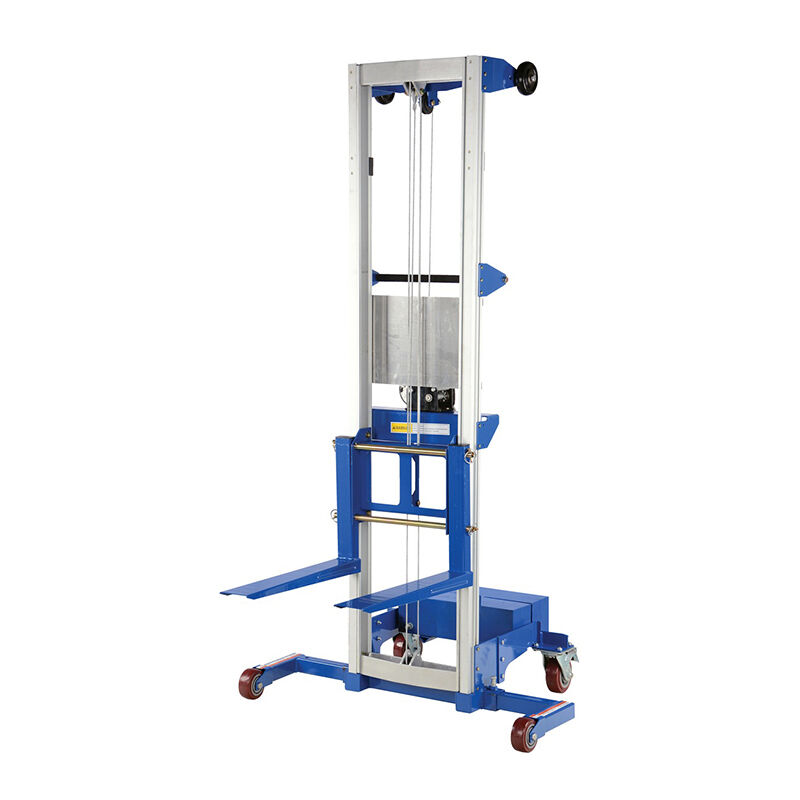

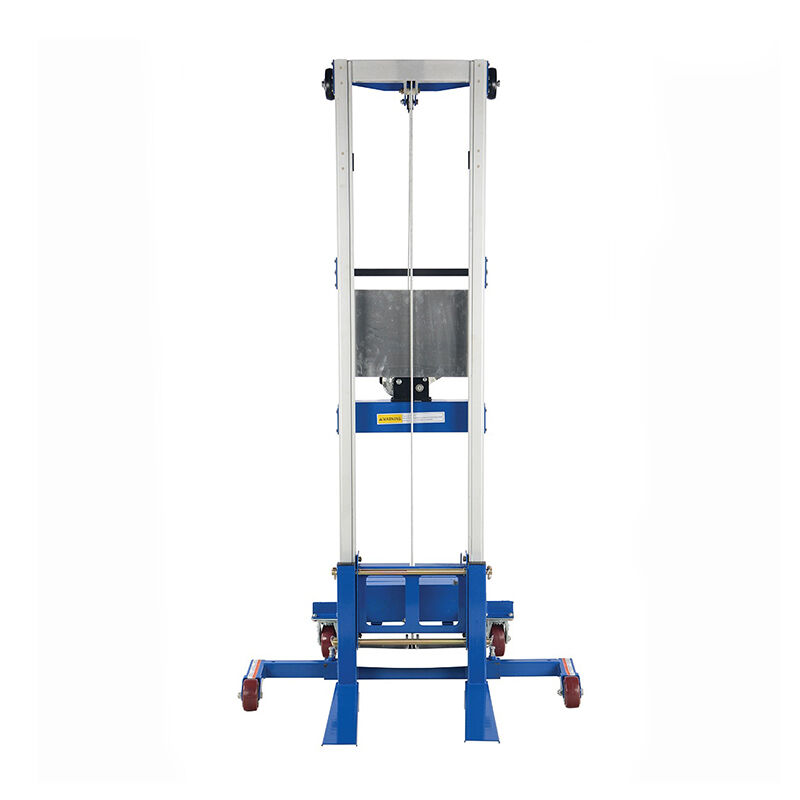

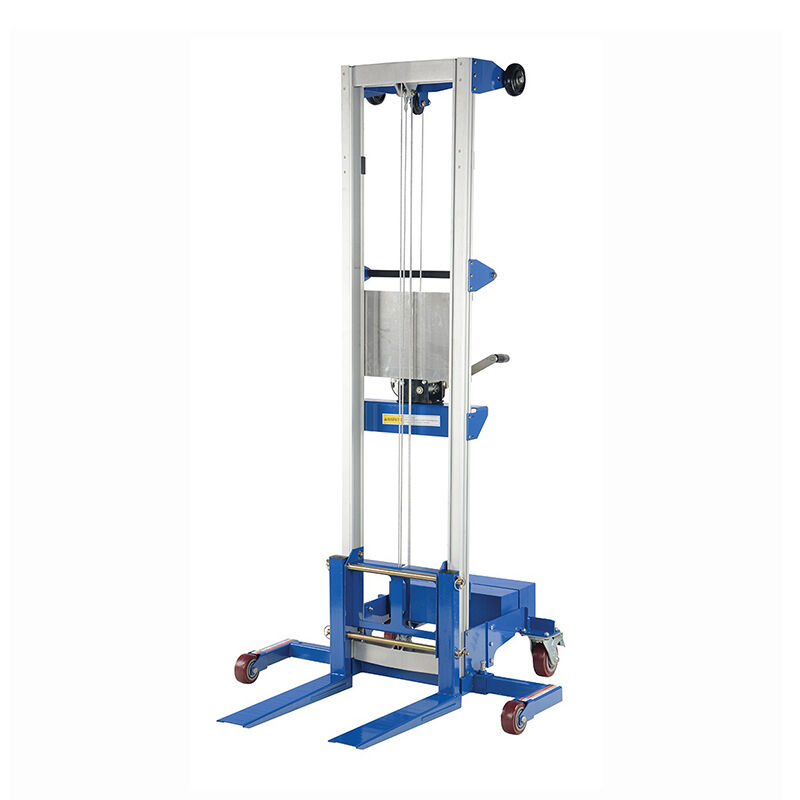

BC Series Counterbalance Hand Winch Stacker
Product Description:
Master tight spaces with power and precision. The BC Counterbalance Stacker is engineered to deliver impressive 3.0m lifting height in the most confined areas, turning space constraints into productive potential.
Key Features:
Features a uniquely short leg length compared to straddle-leg models, allowing unparalleled access to loads in ultra-confined spaces and on countertops.
Robust counterweight design ensures stable and reliable handling of substantial loads up to 181kg, making it a powerhouse for diverse tasks.
The manual winch system effortlessly raises loads to an impressive 3.0m height, with flip-able standard forks for added versatility.
Ready to be outfitted with a range of attachments, adapting seamlessly to your specific material handling challenges.
Manufactured to the highest SINOLIFT quality standards, guaranteeing durability and maximizing your return on investment.
Application Scenarios:
Narrow Aisles & Compact Warehouses
Production Lines & Work Benches
Retail Stock Rooms with Limited Floor Space
Loading/Unloading from Shelves or Countertops
Product Specifications:
| Model | Load Capacity | Lift Height (Forks Up) | Lift Height (Forks Down) | Overall Length | Overall Width | Overall Height | Load Center |
| kg (lb) | m (in) | m (in) | cm (in) | cm (in) | cm (in) | cm (in) | |
| WFH-181 | 181 (400) | 3.0 (120) | 2.5 (98) | 87.6 (34-1/2) | 61 (24) | 170 (67) | 25.4 (10) |
| WFH-227 | 227 (500) | 1.8 (70) | 1.2 (47) | 87.6 (34-1/2) | 61 (24) | 170 (67) | 25.4 (10) |
| SW-159 | 159 (350) | 3.6 (142) | 3.0 (120) | 110 (43) | 73.6 (29) | 202.4 (79-3/4) | 25.4 (10) |
| SW-181 | 181 (400) | 3.0 (120) | 2.5 (98) | 110 (43) | 73.6 (29) | 170 (67) | 25.4 (10) |
| SW-227 | 227 (500) | 1.8 (70) | 1.2 (47) | 110 (43) | 73.6 (29) | 170 (67) | 25.4 (10) |
| BC-159 | 159 (350) | 3.6 (142) | 3.0 (120) | 117 (46) | 73.6 (29) | 202.4 (79-3/4) | 25.4 (10) |
| BC-181 | 181 (400) | 3.0 (120) | 2.5 (98) | 117 (46) | 73.6 (29) | 170 (67) | 25.4 (10) |
| BC-227 | 227 (500) | 1.8 (70) | 1.2 (47) | 117 (46) | 73.6 (29) | 170 (67) | 25.4 (10) |
