비디오 발신 검사: | 제공 | 기계 테스트 보고서: | 제공 |
---|---|---|---|
핵심 구성 요소의 보증: | 1 년 | 서비스 후: | 온라인 서비스, 무료 예비 부품 |
정격 용량: | 1500kg | 포크 길이 (L): | 820mm |
조절 식 포크 너비 (E): | 316–660 mm | 순 중량: | 199 킬로그램 |
Product Name

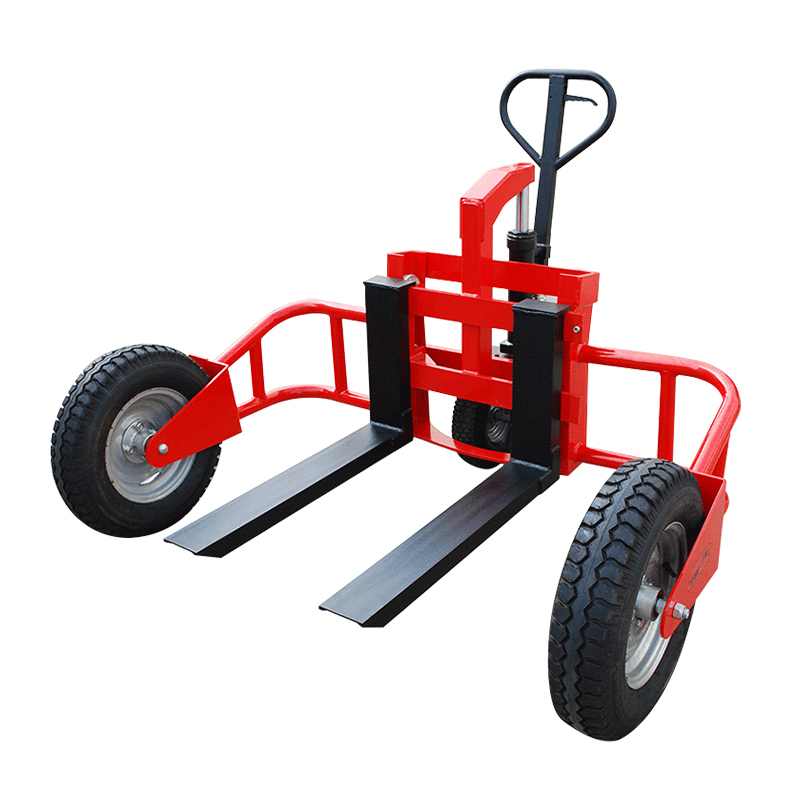

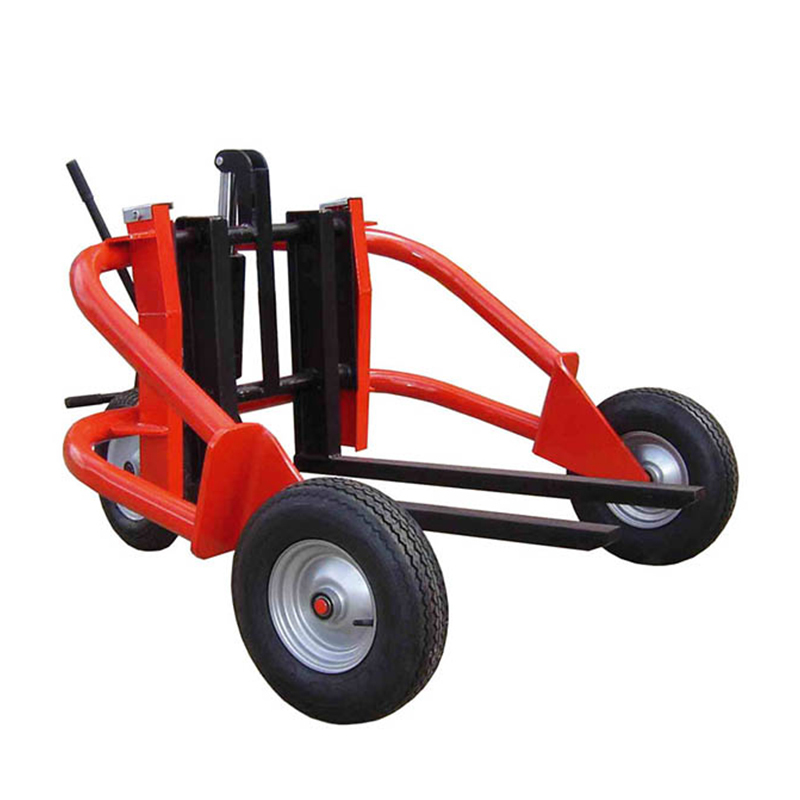

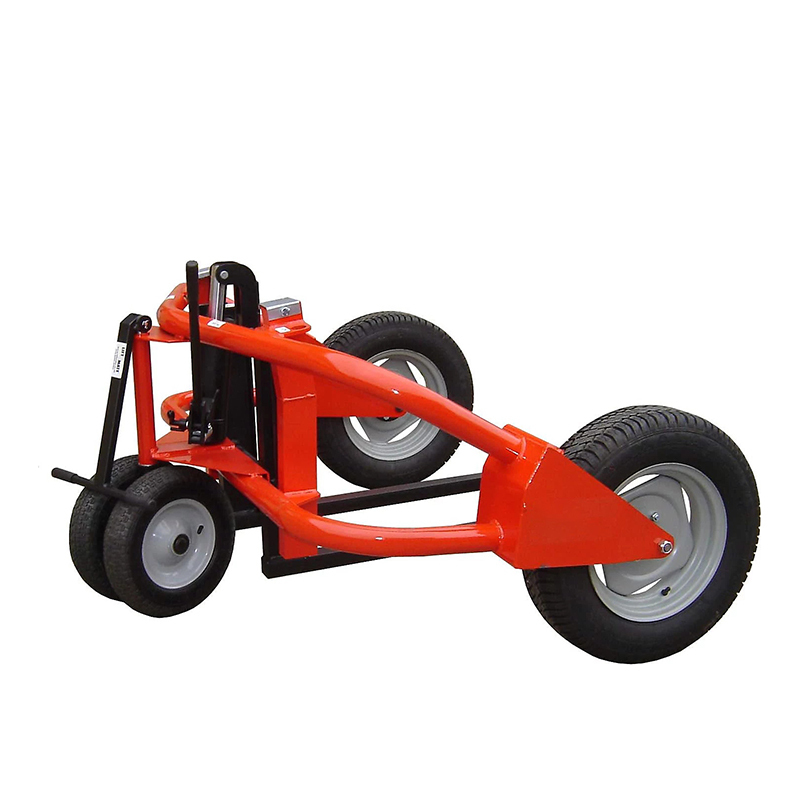

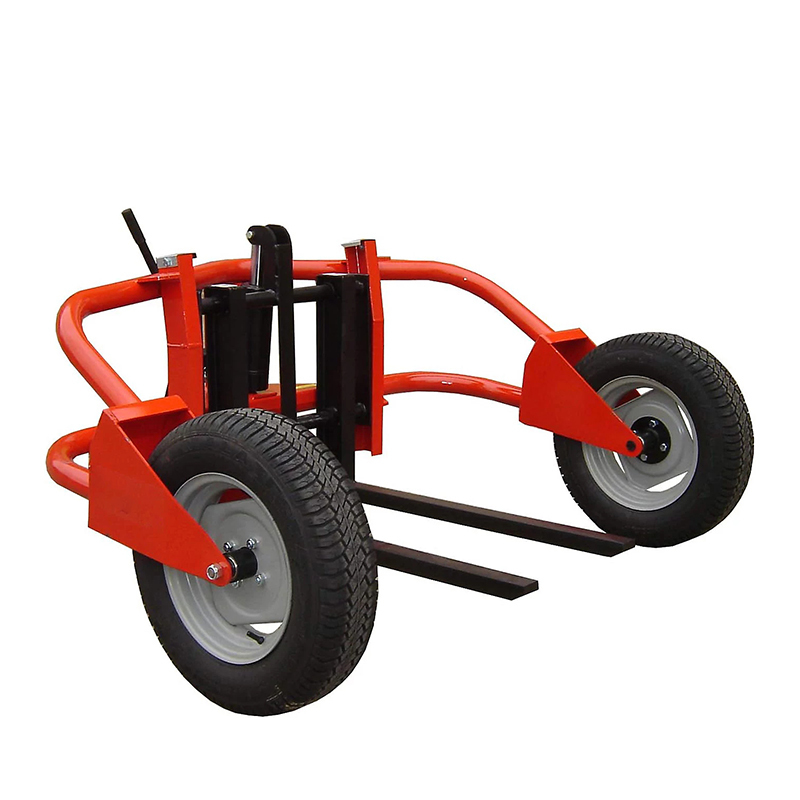

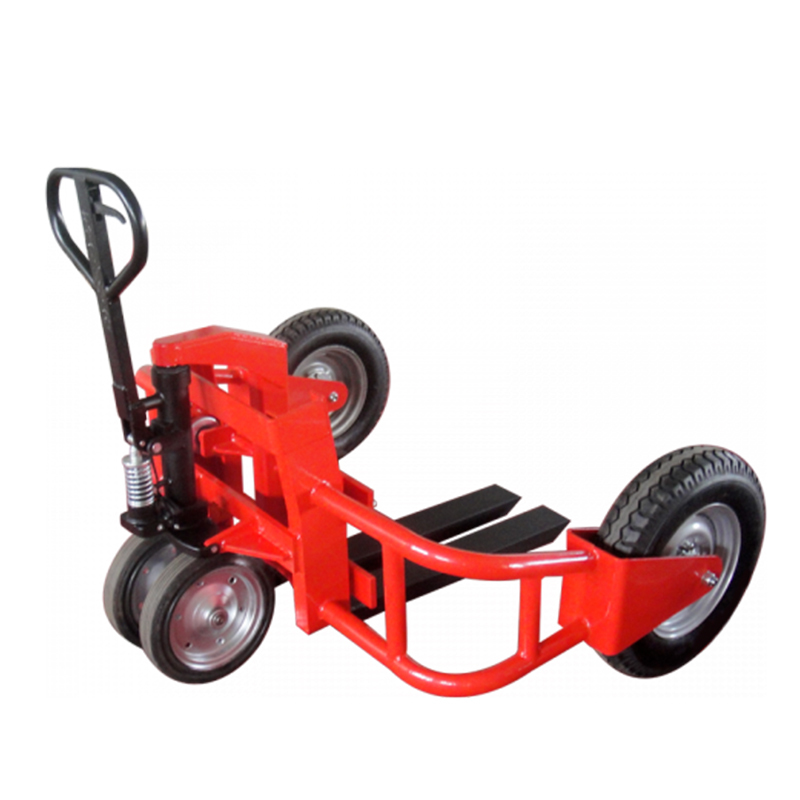

RP1500B All Terrain Heavy Duty Manual Pallet Truck
The RP1500B All-Terrain Manual Pallet Truck features a patented lift handle control system, rugged load capacity, and terrain-conquering wheels—engineered for effortless heavy-duty performance anywhere.
Key Features
1. Exclusive Lift Handle Control System
Innovative linkage mechanism synchronizes handle height with fork width adjustment
Single-handed operation completes fork positioning (3" 9"/76 229mm range)
Automatic mechanical locking ensures secure fixation
2. Exceptional Load Performance
High-strength tubular steel frame optimizes the strength-to-weight ratio
Reinforced hydraulic system withstands intensive operations
3. All-Terrain Adaptation System
Sealed bearing wheels resist sand and debris intrusion
Special tread pattern conquers ramps and rough terrain
Maintenance-free self-lubricating axle bearings
Product Specifications
Specifications | Unit | |
Model | RP1500B | |
Capacity | kg | 1500 |
Max. Fork Height (H) | mm | 323 |
Min. Fork Height (h) | mm | 53 |
Wheel Base (N) | mm | 973 |
Fork Length (L) | mm | 820 |
Load Center | mm | 400 |
Adjustable Fork Width (E) | mm | 316–660 |
Distance Inside Front Wheel (F) | mm | 1279 |
Front Load Wheel (D×f1) | mm | 568×145 |
Rear Steering Wheel (D×f2) | mm | 350 |
Turning Radius (Wa) | mm | 1200 |
Overall Length (A) | mm | 1250 |
Overall Width (B) | mm | 1711 |
Overall Height (C) | mm | 1220 |
Net Weight | kg | 199 |
