| 원래 장소: | 중국 |
|---|---|
| 브랜드 이름: | SINOLIFT |
| 인증: | CE, ISO9001 |
| 모델 번호: | FD30RT4 및 FD35RT4 |
| 최소 주문 수량: | 1세트 |
| 가격: | 협상 가능 |
| 포장 세부 사항: | 표준 규격 수출 패키지 |
| 배달 시간: | 15 일 |
| 지불 조건: | l/c, d/a, d/p, t/t |
| 공급 능력: | 55 단위 |
| 제품명: | FD30RT4 및 FD35RT4 4륜 구동 험지형 지게차 | 전원 유형: | 디젤 |
|---|---|---|---|
| 정격 용량: | 3000/6600kg/lbs, 3500/7700kg/lbs | 서비스 중량: | 5700/12540kg/lbs, 5900/12980kg/lbs |
| 타이어 유형(앞/뒤): | 튜브리스 | 휠베이스: | 1990 밀리미터 |
| 리프트 높이: | 3000mm | 배터리(전압/용량): | 12/120V/아, 12/80V/아 |
| 보증: | 1년 | 서비스 후: | 온라인 서비스, 무료 스파트 일부 |
Product Name:

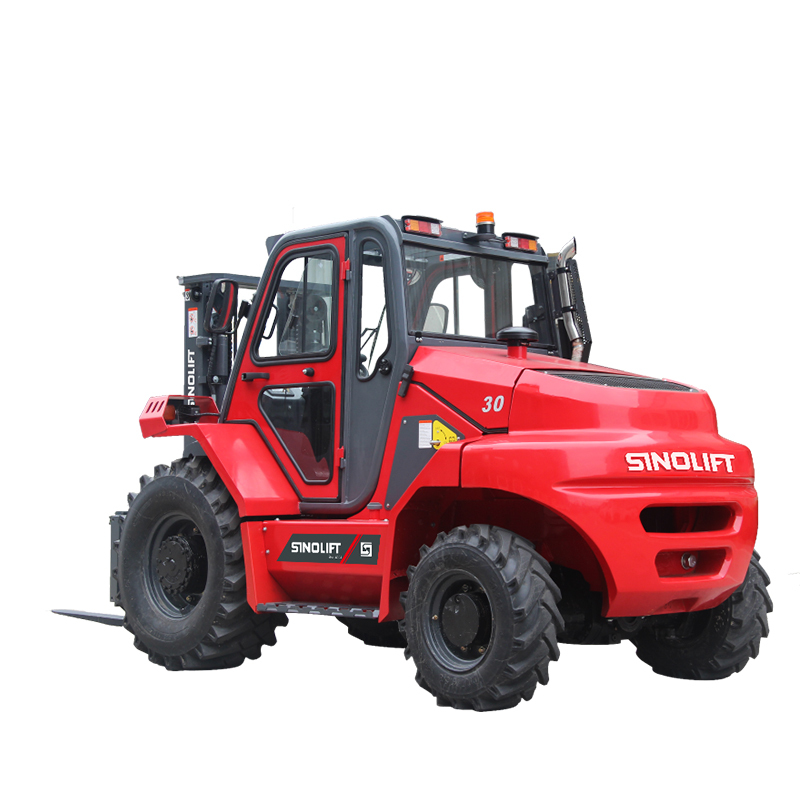

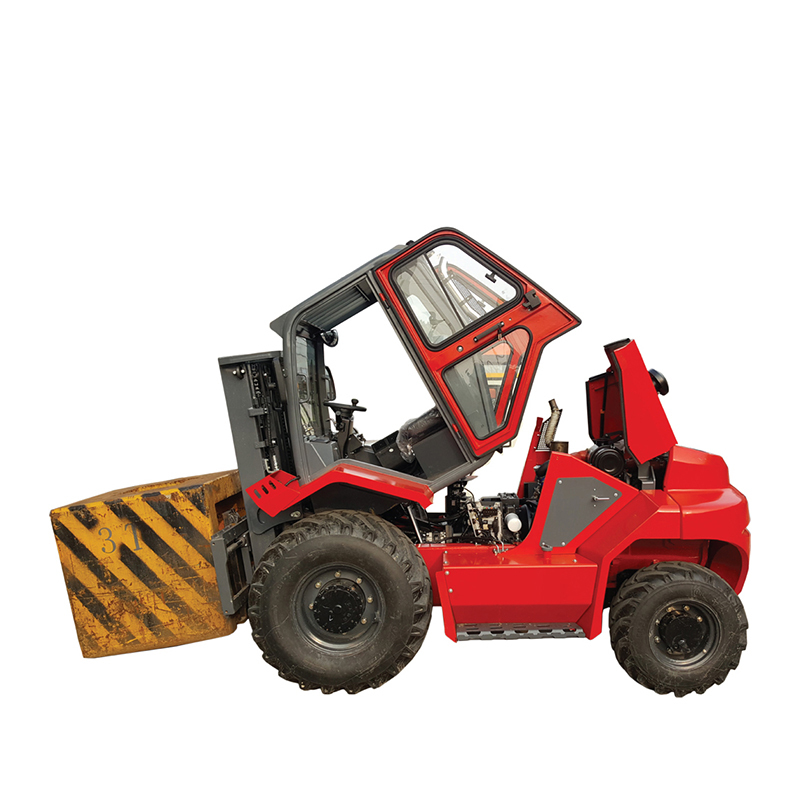

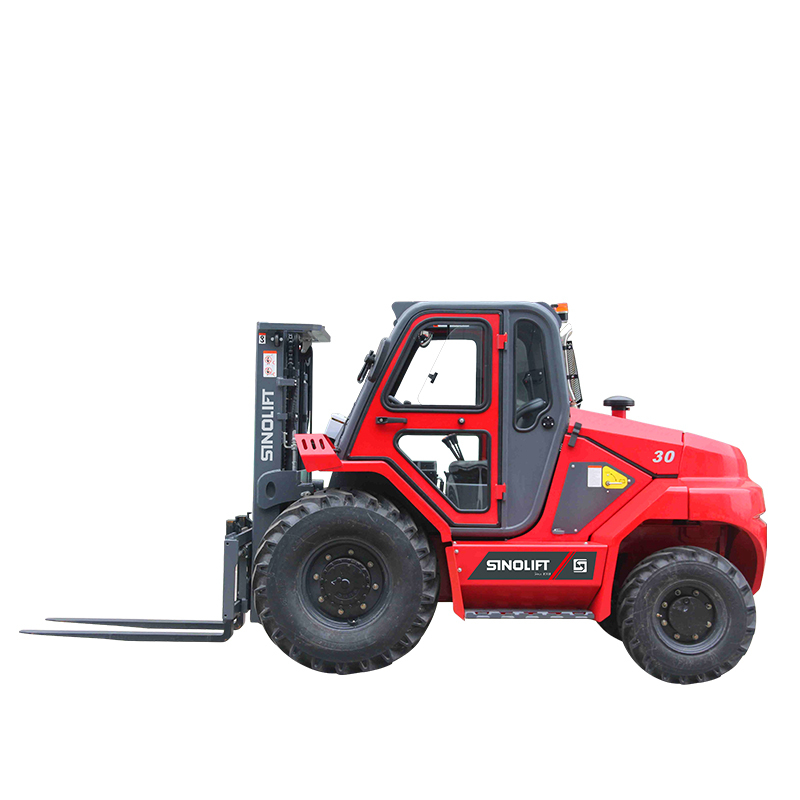

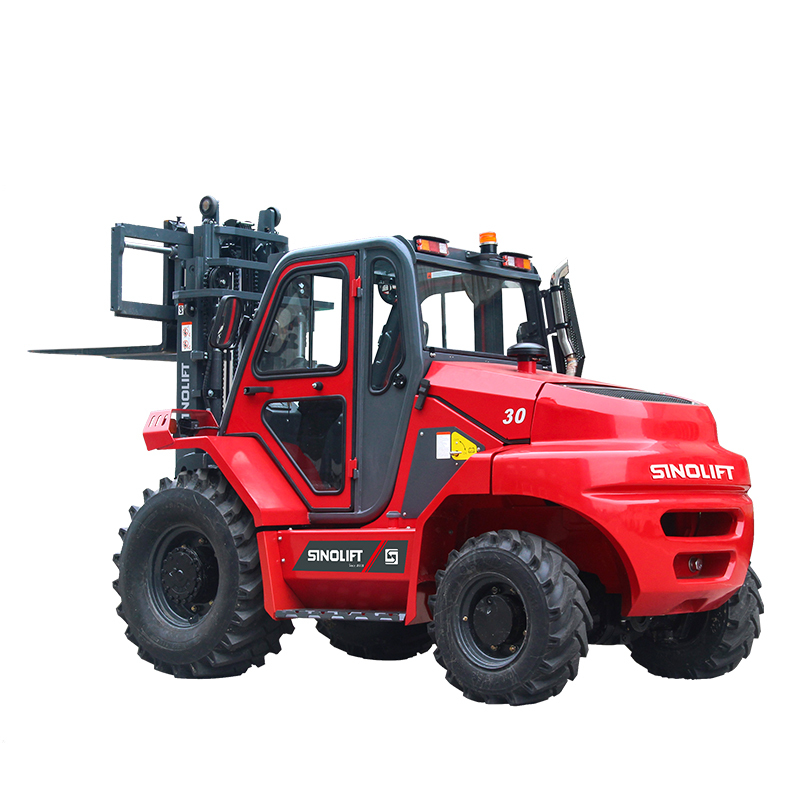

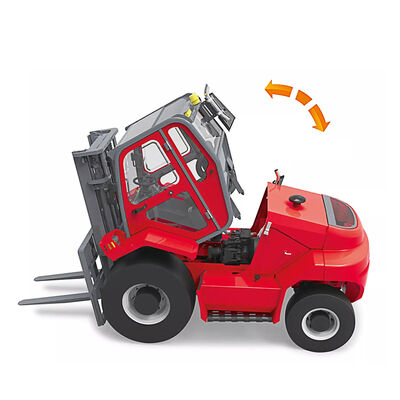

FD30RT4 & FD35RT4 4-Wheel Drive Rough Terrain Forklift
SINOLIFT FD30RT4 & FD35RT4 rough-terrain forklifts are engineered to conquer challenging outdoor environments with robust 4WD capability, Tier 4 emission compliance, and enhanced operator comfort. Ideal for construction, agriculture, and uneven terrains, they combine high ground clearance, adaptive drivetrains, and easy maintenance for reliable performance in extreme conditions.
Highlights of the FD30RT4 & FD35RT4 rough-terrain forklifts:
Ideal Application Areas:
These forklifts are the ideal solution for demanding outdoor and semi-prepared sites. They excel in sectors such as construction, agriculture, forestry, mining, and large-scale infrastructure projects, wherever reliable material handling on rough, unstable, or sloping ground is required.
Product Specifications
| TECHNICAL PARAMETERS 4WD Rough Terrain Forklift 3.0Ton/3.5Ton | |||||||
| General | 1.01 | Model | FD30RT4 | FD35RT4 | |||
| 1.02 | Power Type | Diesel | Diesel | ||||
| 1.03 | Rated Capacity | kg/lbs | 3000/6600 | 3500/7700 | |||
| 1.04 | Load Centre | mm/inch | 600/23.6" | 600/23.6" | |||
| 1.05 | Service Weight | kg/lbs | 5700/12540 | 5900/12980 | |||
| Tyre & Chassis | 2.01 | Tyre Type (Front/Rear) | Tubeless | Tubeless | |||
| 2.02 | Wheel number X=Drive Wheel (Front/Rear) | 2X/2X | 2X/2X | ||||
| 2.03 | Vacuum Tyre | Front | 405/70-20-14PR | 405/70-20-14PR | |||
| 2.04 | Rear | 10.0/75-15.3-12PR | 10.0/75-15.3-12PR | ||||
| 2.05 | Tread | Front | W1 | mm/inch | 1410/55.5" | 1410/55.5" | |
| 2.06 | Rear | W2 | mm/inch | 1484/58.4" | 1484/58.4" | ||
| 2.07 | Wheel Base | L4 | mm/inch | 1990/78.3" | 1990/78.3" | ||
| Characteristic & Dimension | 3.01 | Fork Size | L×W×T | L1 | mm/inch | 1220*125*45/48"*5"*2" | 1220*125*45/48"*5"*2" |
| 3.02 | Mast Tilt Angle | F/R | (α/β) | Deg | 10°/12° | 10°/12° | |
| 3.03 | Lift Height | H | mm/inch | 3000/11.8" | 3000/11.8" | ||
| 3.04 | Mast Lowered Height | H1 | mm/inch | 2230/88" | 2260/89" | ||
| 3.05 | Free Lift Height | H5 | mm/inch | 125/4.9" | 90/3.5" | ||
| 3.06 | Mast Extended Height | H2 | mm/inch | 4245/167" | 4245/167" | ||
| 3.07 | Length to Face of Fork (without Fork) | L | mm/inch | 3252/128" | 3252/128" | ||
| 3.08 | Overall Width | W | mm/inch | 1835/72" | 1835/72" | ||
| 3.09 | Overhead Guard Height | H3 | mm/inch | 2250/88.6" | 2250/88.6" | ||
| 3.10 | Front Overhang | L2 | mm/inch | 700/27.5" | 705/27.7" | ||
| 3.11 | Rear Overhang | L3 | mm/inch | 607/23.9" | 607/23.9" | ||
| 3.12 | Turning Radius(outside) | r | mm/inch | 4380/172.4" | 4380/172.4" | ||
| 3.13 | Ground Clearance (Bottom of chassis) | H4 | mm/inch | 135/5.3" | 135/5.3" | ||
| 3.14 | Min. Insecting Aisle | Ra | mm/inch | 3040 | 3040 | ||
| 3.15 | Min. Right Angle Stacking Aisle Width | RASA | mm/inch | 6350 | 6350 | ||
| Performance | 4.01 | Speed | Travel (Unloaded/Loaded) | km/h | 24/25 | 24/25 | |
| 4.02 | Lifting (Unloaded/Loaded) | mm/s | 480/500 | 480/500 | |||
| 4.03 | Lowing (Unloaded/Loaded) | mm/s | 380/400 | 380/400 | |||
| 4.04 | Max. Gradeability | % | 30 | 30 | |||
| 4.05 | Service Brake | Wet Multi-Disc | Wet Multi-Disc | ||||
| 4.06 | Packing Brake | Caliper Type | Caliper Type | ||||
| 4.07 | Differential | F/R Slip Limited | F/R Slip Limited | ||||
| Power and transmission | 5.0 | Engine Code | HC1 | HC1 | |||
| 5.01 | Engine Model Type | HATZ 4H50TIC | XinChai 4D32G31-051 | ||||
| 5.02 | Rated output | Kw/r.p.m | 54.9/2500 | 36.8/2500 | |||
| 5.03 | Rated Torque | Nm/r.p.m | 24/1600-1900 | 186/1600-1800 | |||
| 5.04 | No. of Cylinder | 4 | 4 | ||||
| 5.05 | Bore x Stroke | mm | 84 x88 | 98 x105 | |||
| 5.06 | Displacement | cc | 1.952 | 3.167 | |||
| 5.07 | Emission Standard | EU IIB/EPA Tier4 | III | ||||
| 5.08 | Fuel Tank Capacity | L | 80 | 60 | |||
| 5.09 | Battery (Voltage/Capacity) | V/Ah | 12/120 | 12/80 | |||
| 5.10 | Transmission Type | Hydraulic | Hydraulic | ||||
| 5.11 | Shift Stage FWD/RVS | 3/2 | 3/2 | ||||
| 5.12 | Operating Pressure of Attachment | Mpa | 18 | 18 | |||
