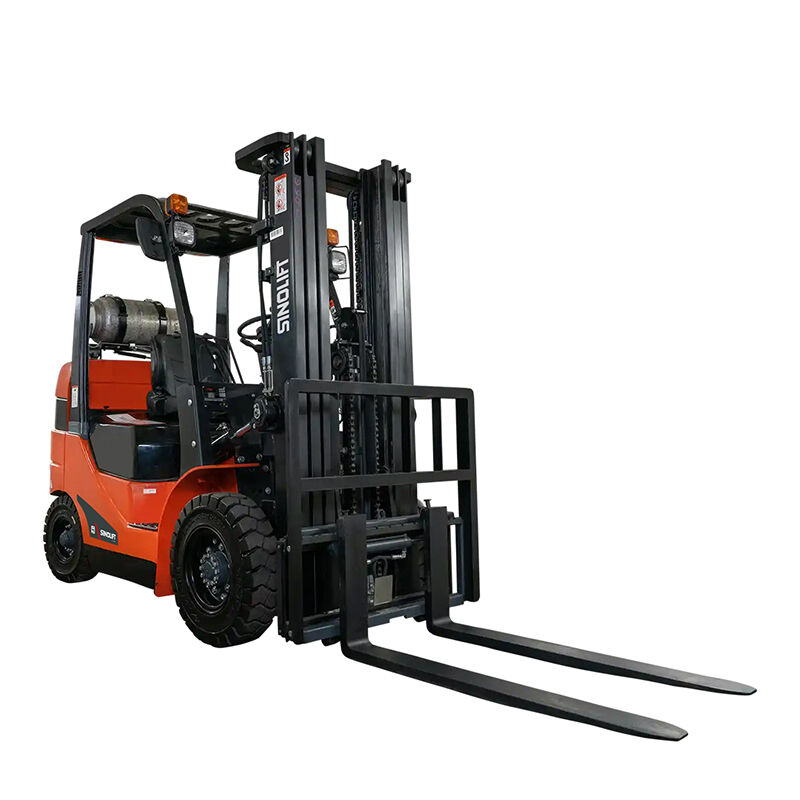

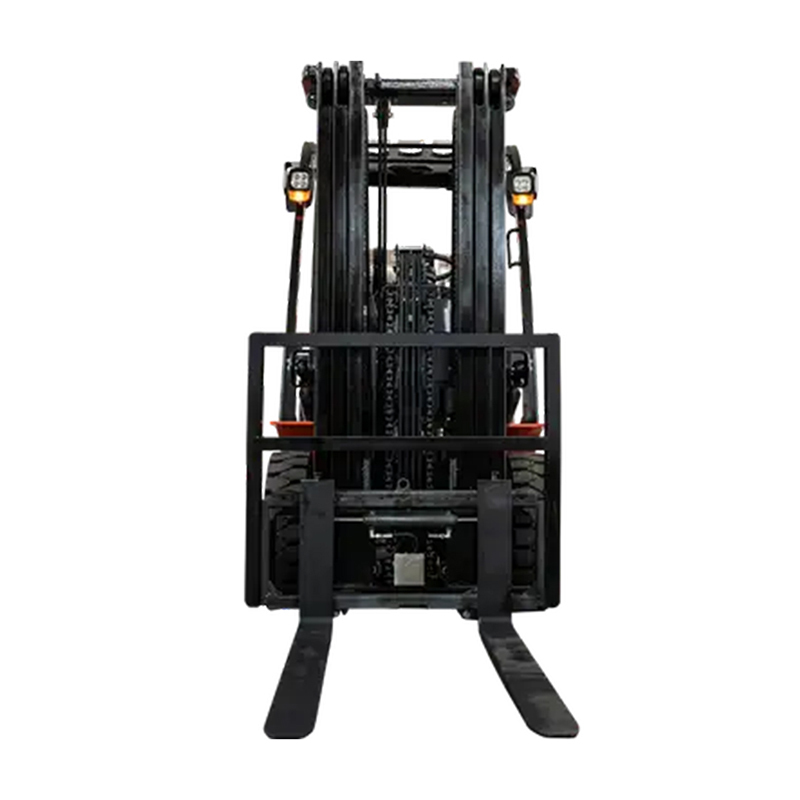

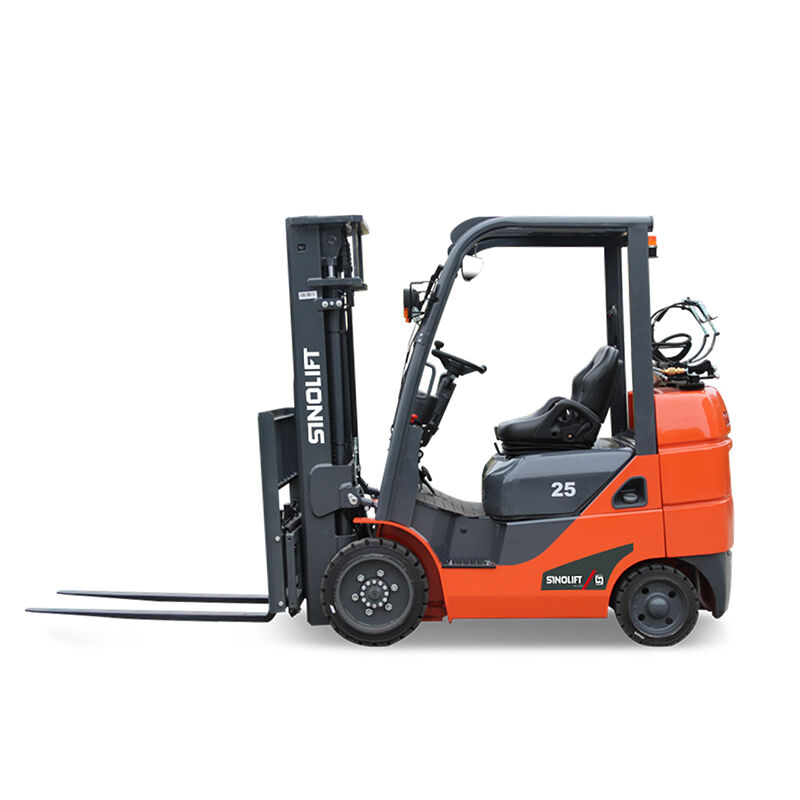

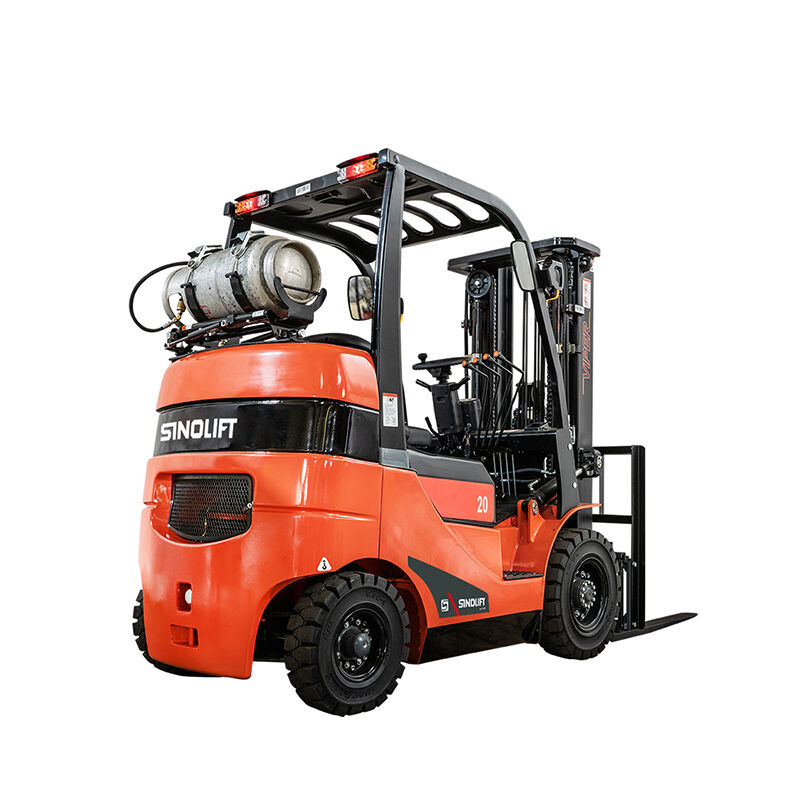

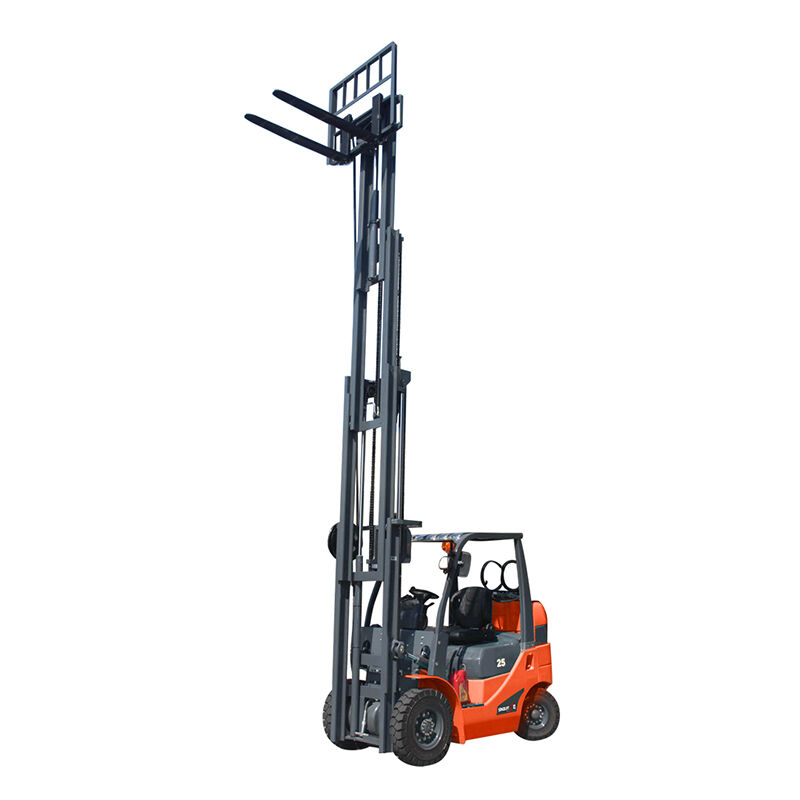

C SERIES 2.0-2.5T Internal-Combustion Cushion Tire Forklift

기본 정보
원래 장소: 중국
브랜드 이름: SINOLIFT
인증: CE, ISO9001
모델 번호: C 시리즈 2.0-2.5T
최소 주문 수량: 1세트
가격: 협상 가능
포장 세부 사항: 표준 규격 수출 패키지
배달 시간: 15일
지불 조건: 신용장, D/A, D/P, T/T
공급 능력: 55 단위
제품명: C SERIES 2.0-2.5T 내연 쿠션 타이어 지게차 전원 유형: LPG
부하 중심: 500mm 리프트 높이: 3000mm
포크 사이즈: 1070×120×40mm 회전 반경: 2110 밀리미터
휠베이스: 1400mm 보증: 1년
애프터 서비스: 온라인 서비스, 무료 부품

Product Overview:

The SINOLIFT C Series 2.0-2.5T Internal-Combustion Cushion Tire Forklift is a robust, globally compliant material handling solution engineered for flexibility and efficiency. Built with heavy-duty steel, it supports 2.0-2.5T loads, offers optional dual-fuel (LPG/gasoline) power, and features a compact design for narrow spaces. Compliant with EPA Tier 4 Final emission standards and tailored to meet European/American market requirements, it delivers stable, safe operations across diverse industrial scenarios.



Key Features:



Application Scenarios:



Product Specifications:

General Manufacturer Brand     SINOLIFT
Model     FY20C FY25C
Power Type     LPG LPG
Rated capacity Q kg 2000 2500
Load center C mm 500 500
Dimensions Lift height H mm 3000 3000
Free lift height H5 mm 125 125
Fork size L×W×T mm 1070×120×40 1070×120×40
Mast tilt angle a/β deg 1 1
Front overhang L2 mm 445 445
Rear overhang L3 mm 510 510
Overall dimensions Length to face of fork L mm 2355 2355
Overall width W mm 1110 1110
Height of load backrest H6 mm 1225 1225
Mast lowered height H1 mm 2070 2070
Mast extended height H2 mm 4070 4070
Overhead guard height H3 mm 2080 2080
Turning radius r mm 2110 2110
Min. Intersecting aisle Ra mm 2316 2316
Min. Right angle stacking aisle width RASA mm 3955 3955
Performance Laden/Unladen Travel speed   km/h 16/17 16/17
Lift speed   mm/s 530/570 530/570
Lowering speed   mm/s 600/300 600/300
Max. gradeability (Loaden/Unloaden)   % 20 20
Max. drawbar pull   N 20000 20000
Self weight   kg 3445 3655
Power Unit Tires Front     21×7×15 21×7×15
Rear     16(1/4)×6×11(1/4) 16(1/4)×6×11(1/4)
Tread Front W1 mm 902 902
Rear W2 mm 900 900
Wheelbase L4 mm 1400 1400
Min. ground clearance H4 mm 80 80
Drive units & control Engine Model     NISSAN K25 EPA PSI 2.4
Rated output   kw/rpm 42/2700 46/2700
Rated torque   N.m/rpm 185/1350 168/1600
No. of cylinder     4 4
Bore×stroke   mm 89×100 86.5×100
Displacement   cc 2488 2351
Emission Standard     EPA T2 / EURO IV EPA T4 / EURO V
Transmissions Type     Mechanical / Hydraulic Mechanical / Hydraulic
Hydraulic system working pressure   Mpa 18 18

C SERIES 2.0-2.5T Internal-Combustion Cushion Tire Forklift 0

C SERIES 2.0-2.5T Internal-Combustion Cushion Tire Forklift 1

C SERIES 2.0-2.5T Internal-Combustion Cushion Tire Forklift 2

C SERIES 2.0-2.5T Internal-Combustion Cushion Tire Forklift 3

C SERIES 2.0-2.5T Internal-Combustion Cushion Tire Forklift 4

C SERIES 2.0-2.5T Internal-Combustion Cushion Tire Forklift 5

C SERIES 2.0-2.5T Internal-Combustion Cushion Tire Forklift 6
